NX Pro

Dynalab NX Pro
Dynalab NX Pro
  • Stand-alone operation
  • Supports network file transfer and reporting
  • Accurate component testing
  • Keyed security access
  • Built for rough industrial environments
  • Tests up to 512 test points

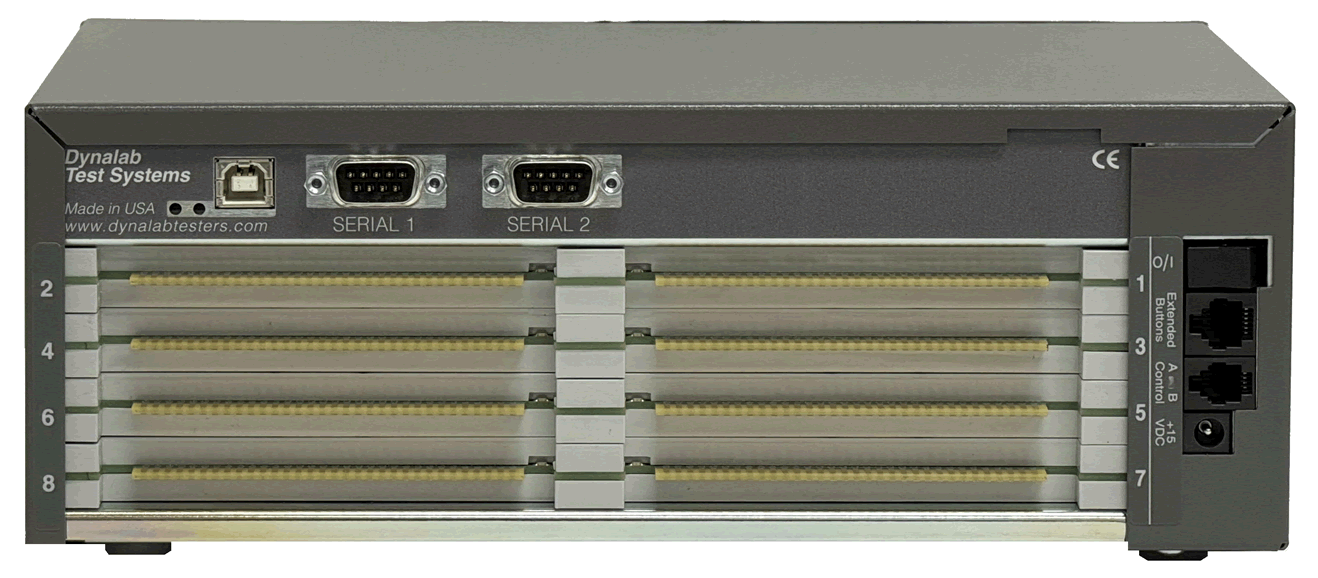

The Dynalab NX Pro Tester is an economical, feature-rich, stand-alone wire harness tester offering up to 512 test points. The powerful NX Editor software application is used to create unique program files to successfully validate all electrical and electro-mechanical wire harness parameters. This tester is compatible with all Dynalab NX accessories such as printers, scanners, control ports, and much more. The NX Pro Tester supports network communications with the NX Server for efficient file transfers and advanced data collection.

For test applications that span the range from simple to complex, Dynalab’s NX Testers offer more features than the competition at a lower price!

ItemSpecifications
ConnectionsContinuity:
0.1 Ω - 10 Ω (±0.1Ω)
10 Ω - 500KΩ (±1%)
500KΩ - 2MΩ (±5%)

Shorts:
1KΩ - 2MΩ (± 20%)
ComponentsResistors:
0.1 Ω -10 Ω (±0.1Ω)
10 Ω - 500KΩ (±1%)
500KΩ - 2MΩ (±5%)

Diodes:
Checks for proper orientation

Capacitors:
100pF - 100,000uF (±2% to ±20%, ±10pF based on capacitor type)
4-Wire (Kelvin) Mode0.005 Ω - 100 Ω (±1%, ±0.005 Ω)
Relay TestingCapable of active relay testing
Test VoltageTest voltage is automatically selected by the NX Tester. The maximum voltage is 14VDC
Test CurrentTest current is automatically selected by the NX Tester. The maximum current is 5mA DC
Test Speed1 seconds per 1024 test points (continuity only)
3 seconds per 1024 test points (continuity and shorts)
DisplayErrors are displayed using connector names, wire names, and wire color on a 4-line x 20 character display.
Audible TonesProvides a variety of user programmable tones for error notification and special events.
Program StorageApproximately 150 to 250 test programs containing under 256 test points. File storage will be reduced with programs that contain higher test point counts. 3.3MB Internal Memory Size.
Control PortConnects the optional Control Port Module for controlling two outputs and monitoring one input.
Serial PortsTwo RS-232 serial ports for connecting printers, bar code scanners, extended displays or the Modular Control System. Two additional RS-232 ports are available with the optional Communication Board.
Network PortNetwork port to allow communication to the NX Server for program file transfers and advanced reporting. Available with the optional Communication Board.
Test Point Interface64 pin card edge connector
Input PowerUses external power supply rated for 100 – 240VAC, 50-60Hz, 30W max. Power supply provides 15VDC to the NX Tester.
Test Point Capacity128 - 512 test points (128 test point increments)
Size (W x D x H)10.7” x 7.5” x 4” (27.2cm x 19 cm x 9.7cm)
Weight6.6 lbs (3 Kg)
Operating ParametersTemperature: 32– 122 degrees F (0– 50 degrees Celsius)
Humidity: 90% non-condensing
WarrantyOne year parts and labor
CertificationsCE Certified
terminal block interface

Terminal Block Interface

The terminal block and ribbon cable are used to connect the customer’s test fixture to the NX Tester. Learn More

discrete wire

Discrete Wire Interface

The edge connector and discrete wires are used to connect the customer’s test fixture to the NX Tester. Learn More

mta header interface

Header Post Interface

The header assembly and ribbon cable are used to connect the customer’s test fixture to the NX Tester. Learn More

Test Point Board

Test Point Board

Each board adds 128 test points to any NX Tester that has available space.  Part Number: 5-4002

Communication Board

Communication Board Kit

Adds two additional RS-232 serial ports to connect to a printer or scanner, and one network port to connect to the NX Server.  Part Number: 5-4011

Pro to Pro + Conversion Kit

Pro to Pro+ Conversion Kit

Converts an NX Pro Tester to an NX Pro+ Tester.  Part Number: 5-4020

NX Pro+ Expansion Unit

NX Pro+ Expansion Unit

Provides ability to accommodate 8 additional test point boards for an NX Pro+ Tester. Learn More

Enhance the NX Tester’s graphics and reporting capabilities with the NX View software application.

NX View
NX View
Reporting

Select the part number below that corresponds to the quantity of test points required (How to calculate?)

Part #Description
2-128-0NX Pro Tester w/128 test points
2-256-0NX Pro Tester w/256 test points
2-384-0NX Pro Tester w/384 test points
2-512-0NX Pro Tester w/512 test points
Communication Board Option

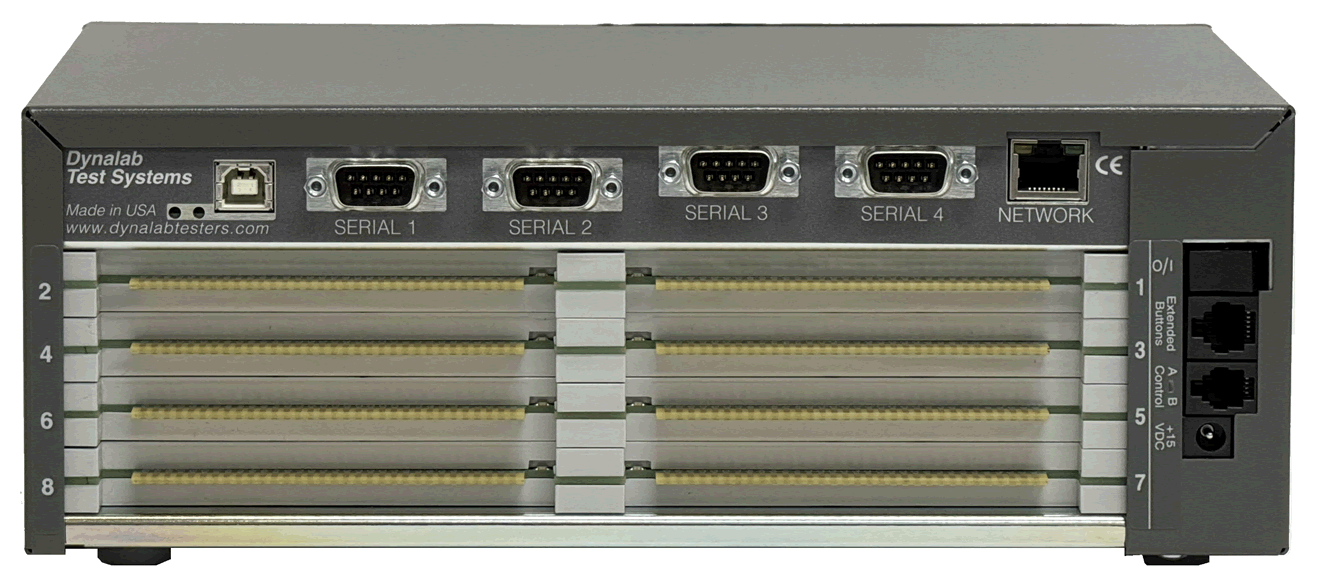

Adds two additional RS-232 serial ports to connect to a printer or scanner, and one network port to connect to the NX Server. To order a tester with this option, replace the last digit of the part number with "1" (i.e. 2-512-1).
NX View Software
Software application that enhances the user experience with additional information, graphics, program storage and reporting. Learn More
