NX Hipot
- 1000VAC/1500VDC Hipot Testing
- Stand-alone operation
- Supports network file transfer and reporting
- Accurate component testing
- Keyed security access
- Built for rough industrial environments
- Tests up to 128 test points
The Dynalab NX Hipot Tester is an economical, feature-rich, stand-alone wire harness tester offering up to 128 test points. The powerful NX Editor software application is used to create unique program files to successfully validate all electrical and electro-mechanical wire harness parameters. This tester is compatible with all Dynalab NX accessories such as printers, scanners, control ports, and much more. The NX Hipot Tester supports network communications with the NX Server for efficient file transfers and advanced data collection.
For test applications that span the range from simple to complex, Dynalab’s NX Testers offer more features than the competition at a lower price!
| Item | Specifications |
| Dielectric Withstanding (DW) Range | 50 VDC – 1500 VDC (± 5%, ± 5 VDC) 50 VAC – 1000 VAC (± 5%, ± 10 VAC) (Optional, specify with "-AC" suffix) |
| Insulation Resistance (IR) Range | 5 MΩ – 1 GΩ (± 10%) |
| Connections | Continuity: 0.1 Ω - 10 Ω (±0.1Ω) 10 Ω - 500KΩ (±1%) 500KΩ - 2MΩ (±5%) Shorts: 1KΩ - 2MΩ (± 20%) 4-Wire (Kelvin) Mode: 0.005 Ω - 100 Ω (±1%, ±0.005 Ω) |
| Components | Resistors: 0.1 Ω -10 Ω (±0.1Ω) 10 Ω - 500KΩ (±1%) 500KΩ - 2MΩ (±5%) Diodes: Checks for proper orientation Capacitors: 100pF - 100,000uF (±2% to ±20%, ±10pF based on capacitor type) Relays: Capable of active relay testing |
| Testing Method | Utilizes proprietary electronic switching circuits designed to validate connections from NX Editor program data. |
| Continuity Test Voltage | Test voltage is defined by the NX Tester for optimum resistance measurements. The voltage will not exceed 14VDC and cannot be configured by the user. |
| Continuity Test Current | Test current is defined by the NX Tester for optimum measurements. The current will not exceed 5mA DC and cannot be configured by the user. |
| Test Speed | 1 seconds per 1024 test points (continuity only) 3 seconds per 1024 test points (continuity and shorts) 9 seconds per 128 test points (Hipot) |
| Display | Errors are displayed using connector names, wire names, and wire color on a 4-line x 20 character display. |
| Audible Tones | Provides a variety of user programmable tones for error notification and special events. |
| Program Storage | Approximately 150 to 250 test programs containing under 256 test points. File storage will be reduced with programs that contain higher test point counts. 3.3MB Internal Memory Size. |
| Control Port | Connects the optional Control Port Module for controlling two outputs and monitoring one input. |
| Serial Ports | Two RS-232 serial ports for connecting printers, bar code scanners, extended displays or the Modular Control System. Two additional RS-232 ports are available with the optional Communication Board. |
| Network Port | Network port to allow communication to the NX Server for program file transfers and advanced reporting. Available with the optional Communication Board (100 Mbps). |
| Test Point Interface | DIN Connector (96 Position, 32 Loaded) |
| Input Power | Uses external power supply rated for 100 – 240VAC, 50-60Hz, 30W max. Power supply provides 15VDC to the NX Tester. |
| Test Point Capacity | 64 or 128 test points |
| Size (W x D x H) | 10.7” x 7.5” x 3.8” (27.2 cm x 19.0 cm x 9.7 cm) |
| Weight | 7.4 lbs (3.4 Kg) |
| Operating Parameters | Temperature: 32– 122 degrees F (0– 50 degrees Celsius) Humidity: 75% non-condensing |
| Warranty | One year parts and labor |
| Certifications | CE Certified |
Hipot Discrete Wire Cable Assembly
The Hipot Discrete Wire Cable Assembly consists of 32 individual 22 AWG wires, 6 feet long, ready to be connected to a fixture board. Learn More
Hipot Discrete Wire Connector
Hipot Discrete Wire Connectors can be used to build your own interface cables with customer supplied wires. Solder terminals, no tooling required. Learn More
Hipot Test Point Boards
Each NX Hipot Test Point Board provides an additional 64 test points for any NX Hipot Tester. Part Number: 5-4006
Communication Board Kit
Adds two additional RS-232 serial ports to connect to a printer or scanner, and one network port (100 Mbps) to connect to the NX Server. Part Number: 5-4011
Enhance the NX Tester’s capabilities with the NX View software application!
Select the part number below that corresponds to the quantity of test points required (How to calculate?)
| Part # | Description |

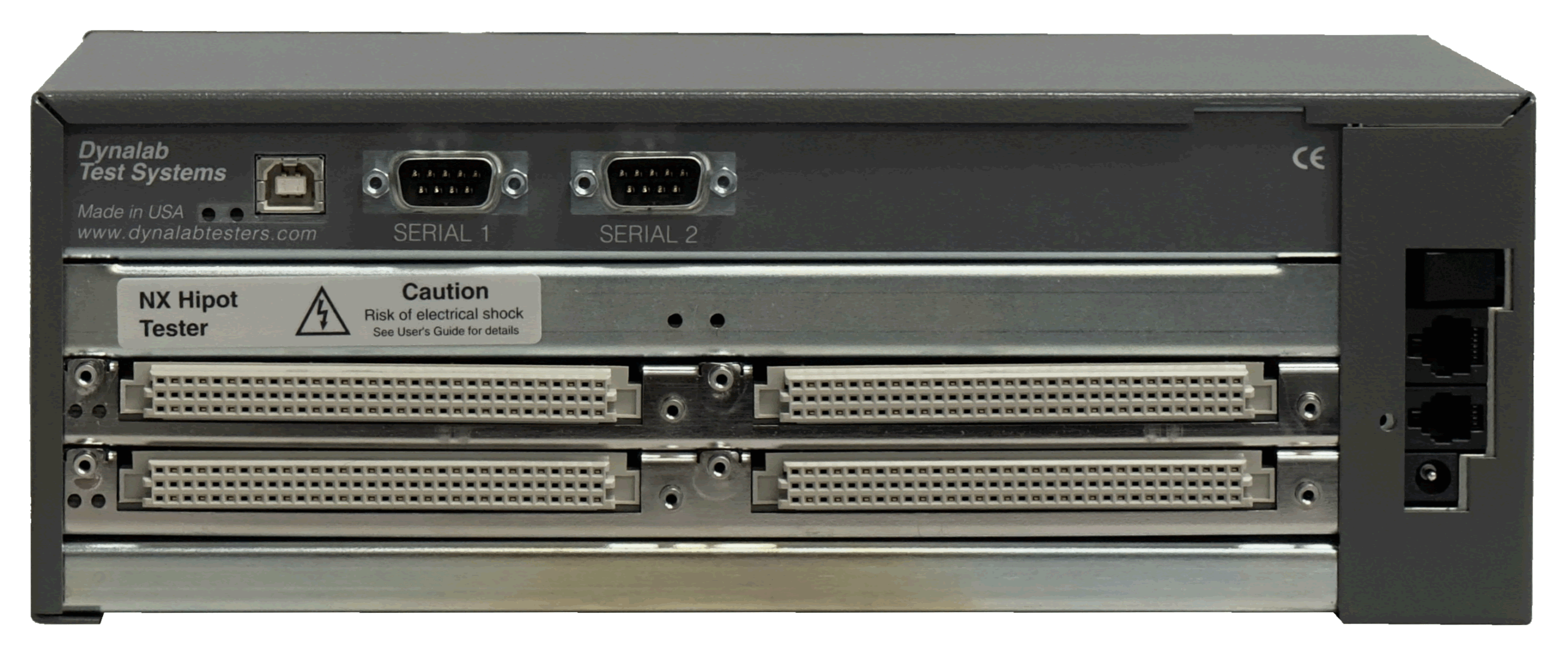

| 6-064-0 | NX Hipot Tester with 64 Test Points |
| 6-128-0 | NX Hipot Tester with 128 Test Points |
| 1000 VAC Hipot Option |
| To order this option, add -AC to the end of the part number (i.e. 6-128-0-AC). |
| Communication Board Option |

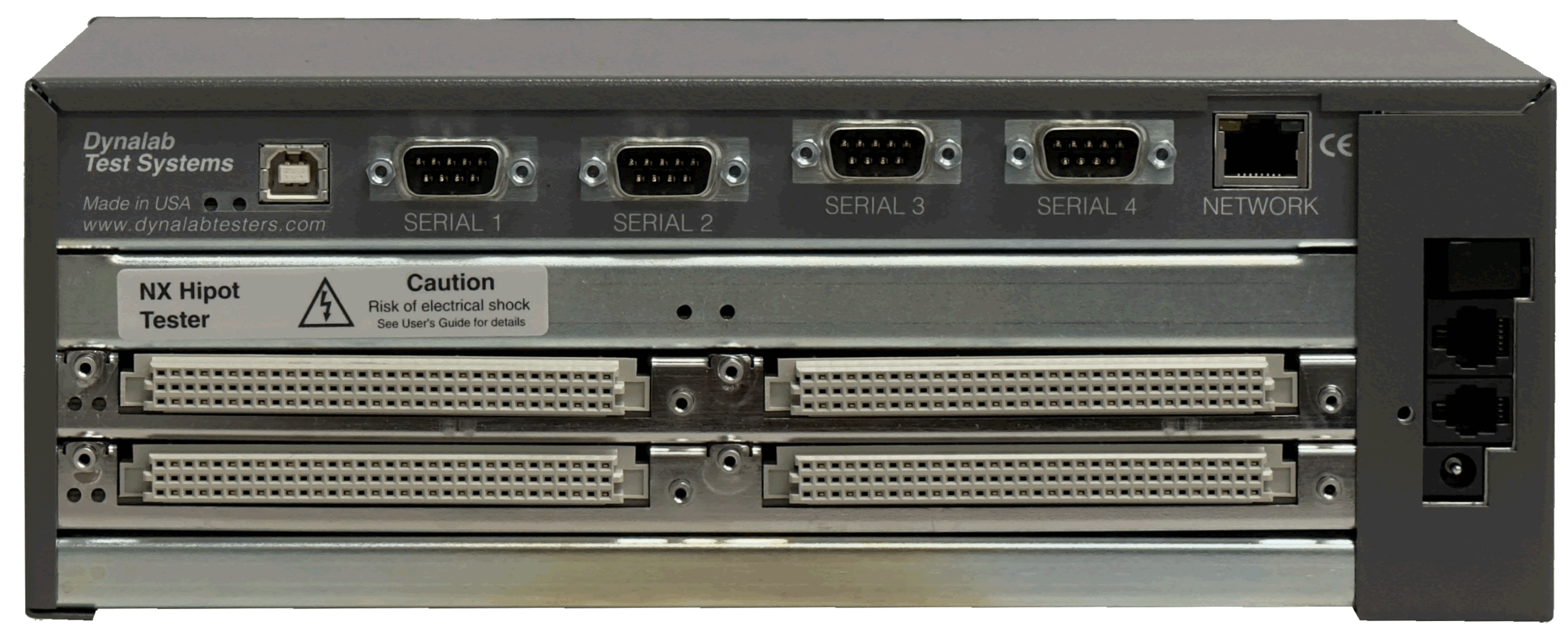

| Adds two additional RS-232 serial ports to connect to a printer or scanner, and one network port to connect to the NX Server. To order a tester with this option, replace the last digit of the part number with "1" (i.e. 6-128-1). |
| NX View Software |
| Software application that enhances the user experience with additional information, graphics, program storage and reporting. Learn More |
