NX Pro+
- Stand-alone operation
- Supports network file transfer and reporting
- Accurate component testing
- Keyed security access
- Built for rough industrial environments
- Tests up to 32,768 test points
The Dynalab NX Pro Tester is an economical, feature-rich, stand-alone wire harness tester offering up to 32,768 test points. The powerful NX Editor software application is used to create unique program files to successfully validate all electrical and electro-mechanical wire harness parameters. This tester is compatible with all Dynalab NX accessories such as printers, scanners, control ports, and much more. The NX Pro Tester supports network communications with the NX Server for efficient file transfers and advanced data collection.
For test applications that span the range from simple to complex, Dynalab’s NX Testers offer more features than the competition at a lower price!
| Item | Specifications |
| Connections | Continuity: 0.1 Ω - 10 Ω (±0.1Ω) 10 Ω - 500KΩ (±1%) 500KΩ - 2MΩ (±5%) Shorts: 1KΩ - 2MΩ (± 20%) |
| Components | Resistors: 0.1 Ω - 10 Ω (±0.1Ω) 10 Ω - 500KΩ (±1%) 500KΩ - 2MΩ (±5%) Diodes: Checks for proper orientation Capacitors: 100pF - 100,000uF (±2% to ±20%, ±10pF based on capacitor type) |
| 4-Wire (Kelvin) Mode | 0.005 Ω - 100 Ω (±1%, ±0.005 Ω) |
| Relay Testing | Capable of active relay testing |
| Testing Method | Utilizes proprietary electronic switching circuits designed to validate connections from NX Editor program data. |
| Test Voltage | Test voltage is defined by the NX Tester for optimum resistance measurements. The voltage will not exceed 14VDC and cannot be configured by the user. |
| Test Current | Test current is defined by the NX Tester for optimum measurements. The current will not exceed 5mA DC and cannot be configured by the user. |
| Test Speed | 1 seconds per 1024 test points (continuity only) 3 seconds per 1024 test points (continuity and shorts) |
| Display | Errors are displayed using connector names, wire names, and wire color on a 4-line x 20 character display. |
| Audible Tones | Provides a variety of user programmable tones for error notification and special events. |
| Program Storage | Approximately 150 to 250 test programs containing under 256 test points. File storage will be reduced with programs that contain higher test point counts. 3.3MB Internal Memory Size. |
| Control Port | Connects the optional Control Port Module for controlling two outputs and monitoring one input. |
| Serial Ports | Two RS-232 serial ports for connecting printers, bar code scanners, extended displays or the Modular Control System. Two additional RS-232 ports are available with the optional Communication Board. |
| Network Port | Network port to allow communication to the NX Server for program file transfers and advanced reporting. Available with the optional Communication Board (100 Mbps). |
| Test Point Interface | 64 pin card edge connector |
| Input Power | Uses external power supply rated for 100 – 240VAC, 50-60Hz, 30W max. Power supply provides 15VDC to the NX Tester. |
| Test Point Capacity | 128 - 32,768 test points (128 test point increments) |
| Size (W x D x H) | NX Pro: 10.7” x 7.5” x 4” (27.2cm x 19 cm x 9.7cm) NX Expansion Unit: 9.5” x 6.4” x 6.3” (24.2cm x 16.3cm x 16 cm) |
| Weight | NX Pro: 6.6 lbs (3 Kg) NX Expansion Unit:8.0 lbs (3.6 Kg) |
| Operating Parameters | Temperature: 32– 122 degrees F (0– 50 degrees Celsius) Humidity: 90% non-condensing |
| Warranty | One year parts and labor |
| Certifications | CE Certified |
Terminal Block Interface
The terminal block and ribbon cable are used to connect the customer’s test fixture to the NX Tester. Learn More
Discrete Wire Interface
The edge connector and discrete wires are used to connect the customer’s test fixture to the NX Tester. Learn More
Header Post Interface
The header assembly and ribbon cable are used to connect the customer’s test fixture to the NX Tester. Learn More

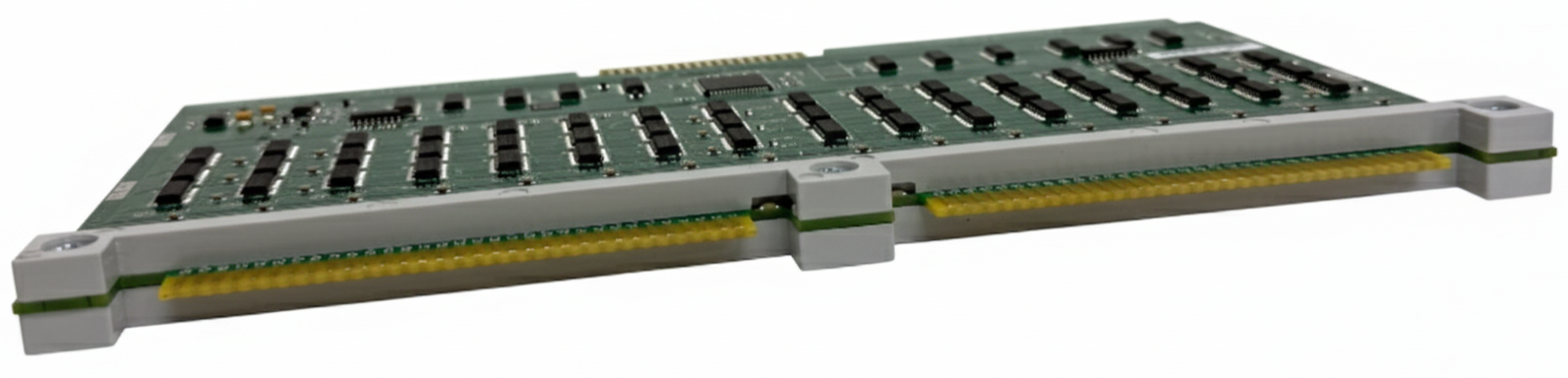

Test Point Board
Each board adds 128 test points to any NX Tester that has available space. Part Number: 5-4002
Communication Board Kit
Adds two additional RS-232 serial ports to connect to a printer or scanner, and one network port (100 Mbps) to connect to the NX Server. Part Number: 5-4011

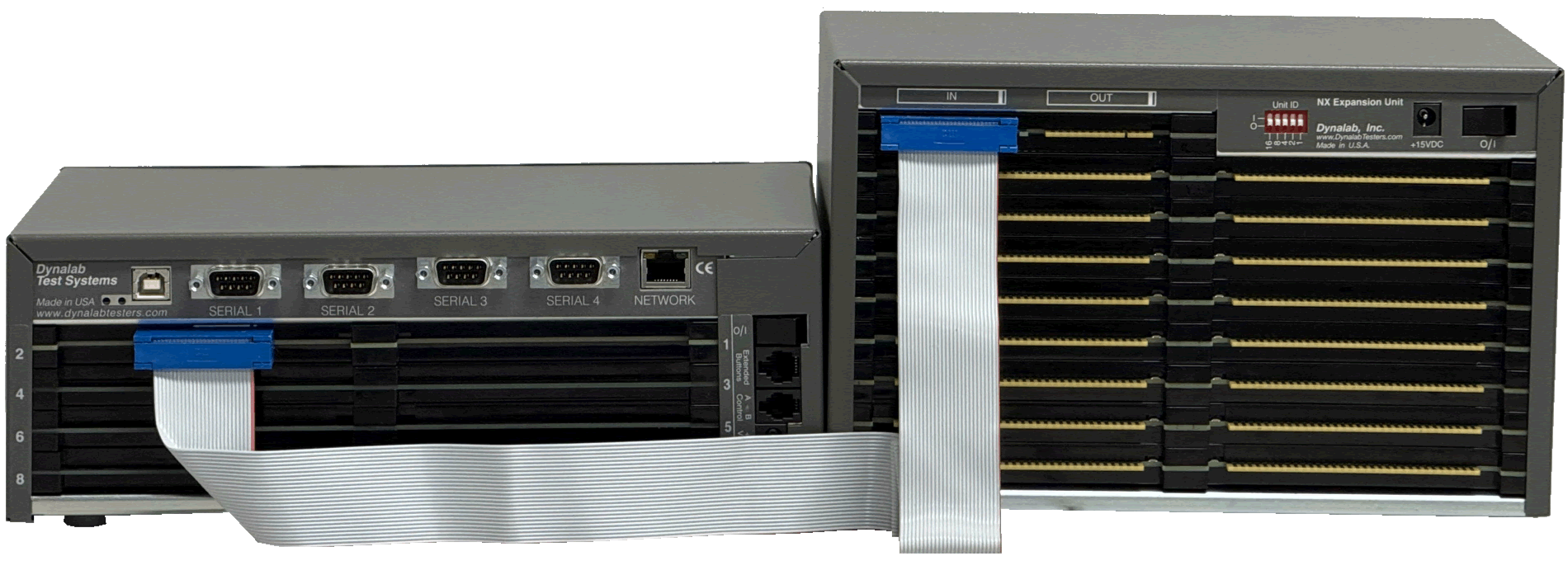

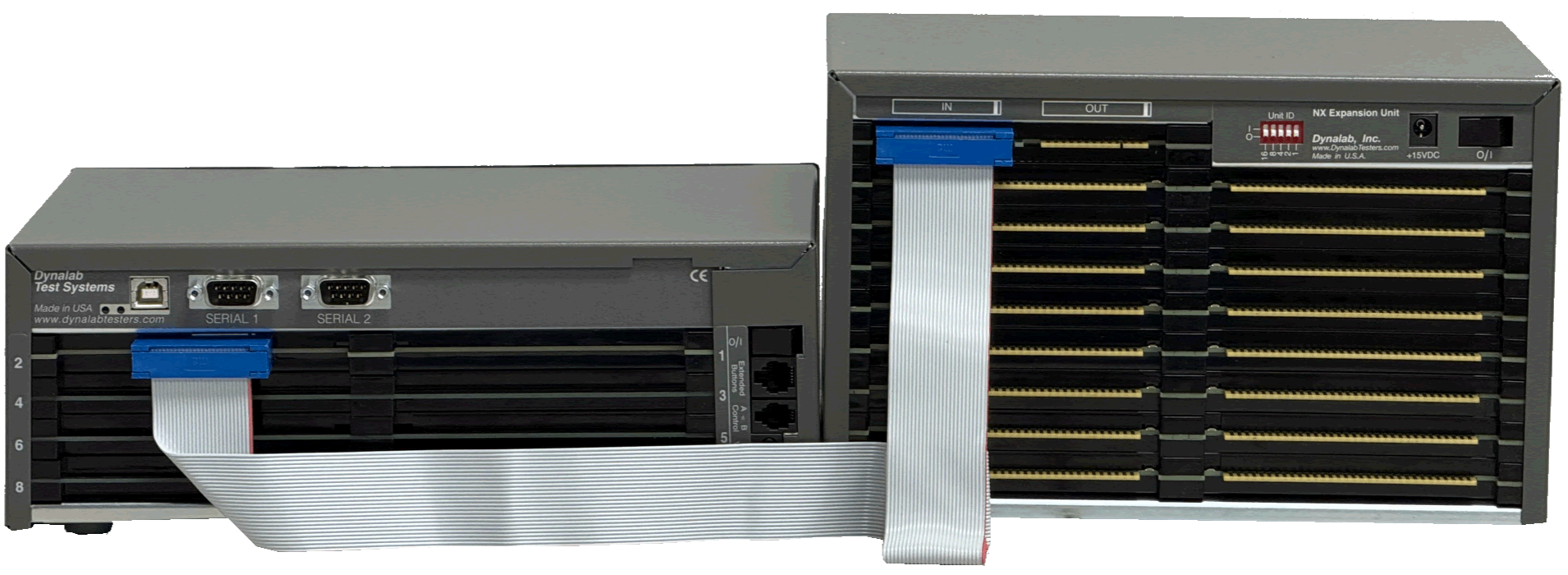

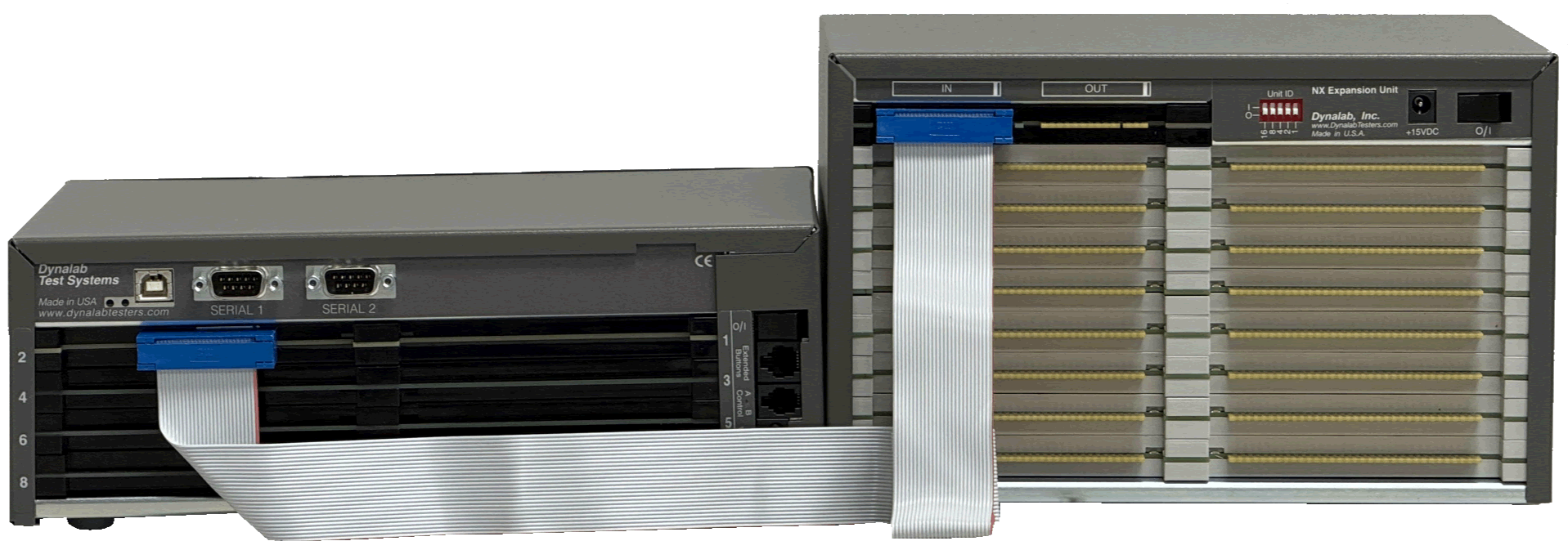

NX Pro+ Expansion Unit
Provides ability to accommodate 8 additional test point boards for an NX Pro+ Tester. Learn More
Enhance the NX Tester’s capabilities with the NX View software application!
Select the part number below that corresponds to the quantity of test points required (How to calculate?)
| Part # | Description |
| 3-00640-0 | NX Pro+ Tester with 640 Test Points |
| 3-00768-0 | NX Pro+ Tester with 768 Test Points |
| 3-00896-0 | NX Pro+ Tester with 896 Test Points |
| 3-01024-0 | NX Pro+ Tester with 1024 Test Points |
Change part number to specify test point quantity in 128 point increments (i.e., 3-02048-0 contains 2048 test points)
| Communication Board Option |
| Adds two additional RS-232 serial ports to connect to a printer or scanner, and one network port to connect to the NX Server. To order a tester with this option, replace the last digit of the part number with "1" (i.e. 3-01024-1). |
| NX View Software |
| Software application that enhances the user experience with additional information, graphics, program storage and reporting. Learn More |
