NX Pro+ Expansion Unit
- Accepts 8 test point boards
- Total of 1024 test points per unit
- Total of 32 Expansion Units per system
- Includes communication cables

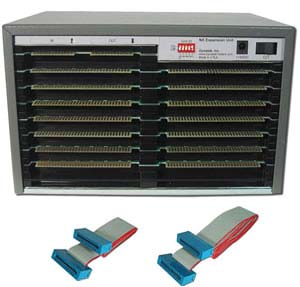

The NX Pro+ System is based on an expandable architecture, and the Expansion Unit is the basic building block. Each expansion unit is supplied with a 2′ and a 6′ ribbon cable to connect to the NX Pro Tester or another Expansion Unit – either cable can be used depending on distance required between units. An Expansion Unit can contain up to 8 test point boards for a maximum of 1024 test points. An NX Pro+ System may contain up to 32 Expansion Units.
The Expansion Units can be configured with two different types of Test Point Boards:
Original Test Point Boards for continuity/shorts/components testing
4-0128………..Expansion Unit with 128 Test Points
4-0256………..Expansion Unit with 256 Test Points
4-0384………..Expansion Unit with 384 Test Points
4-0512………..Expansion Unit with 512 Test Points
4-0640………..Expansion Unit with 640 Test Points
4-0768………..Expansion Unit with 768 Test Points
4-0896………..Expansion Unit with 896 Test Points
4-1024………..Expansion Unit with 1024 Test Points
V2: Same features as original Test Point Board, plus ability to illuminate LED’s
If illuminating LED’s is required, then include a “-V2” suffix when ordering
4-0128-V2………..Expansion Unit with 128 Test/LED Points
4-0256-V2………..Expansion Unit with 256 Test/LED Points
4-0384-V2………..Expansion Unit with 384 Test/LED Points
4-0512-V2………..Expansion Unit with 512 Test/LED Points
4-0640-V2………..Expansion Unit with 640 Test/LED Points
4-0768-V2………..Expansion Unit with 768 Test/LED Points
4-0896-V2………..Expansion Unit with 896 Test/LED Points
4-1024-V2………..Expansion Unit with 1024 Test/LED Points
