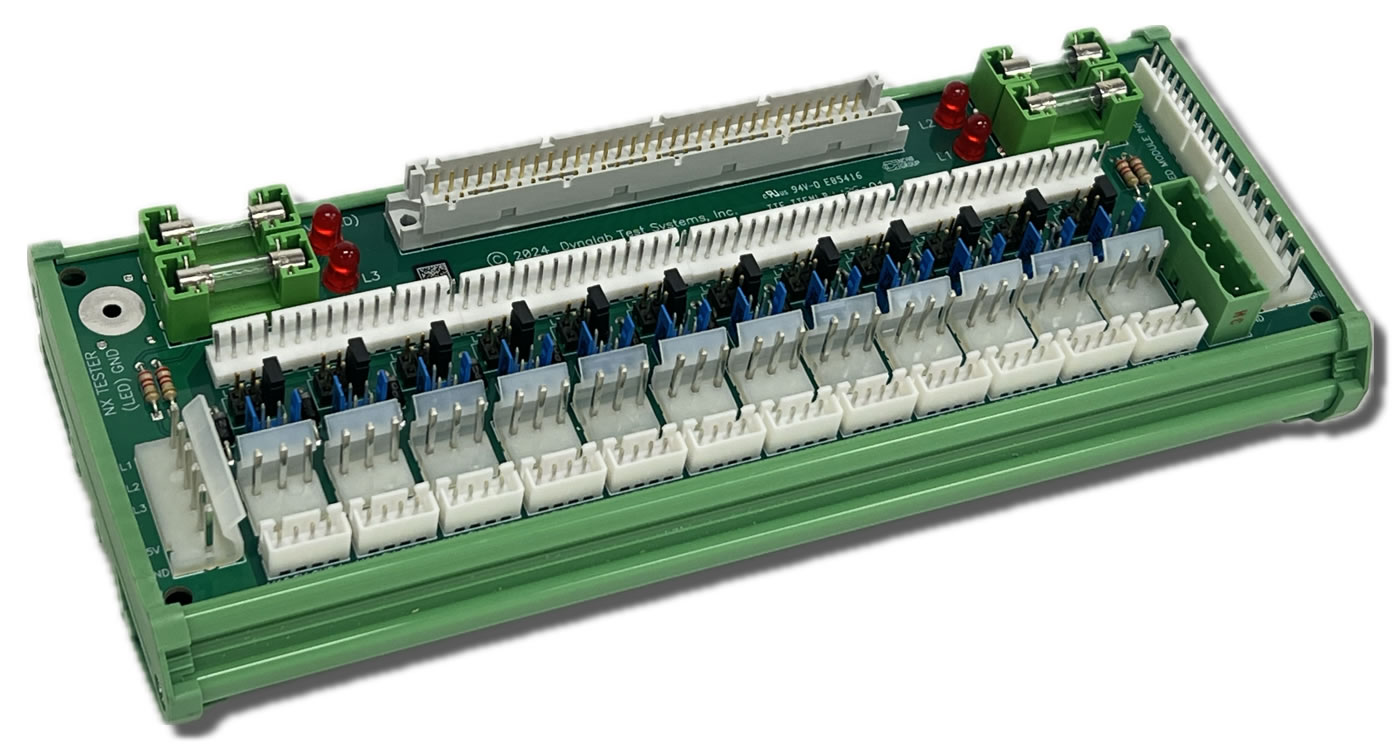

OLTT Interface
The OLTT Interface is specifically designed to be used with an end-of-line pneumatic test table. This interface accommodates test points, test fixture power distribution, and test fixture control distribution.
Supporting Documentation: OLTT Interface Application Note

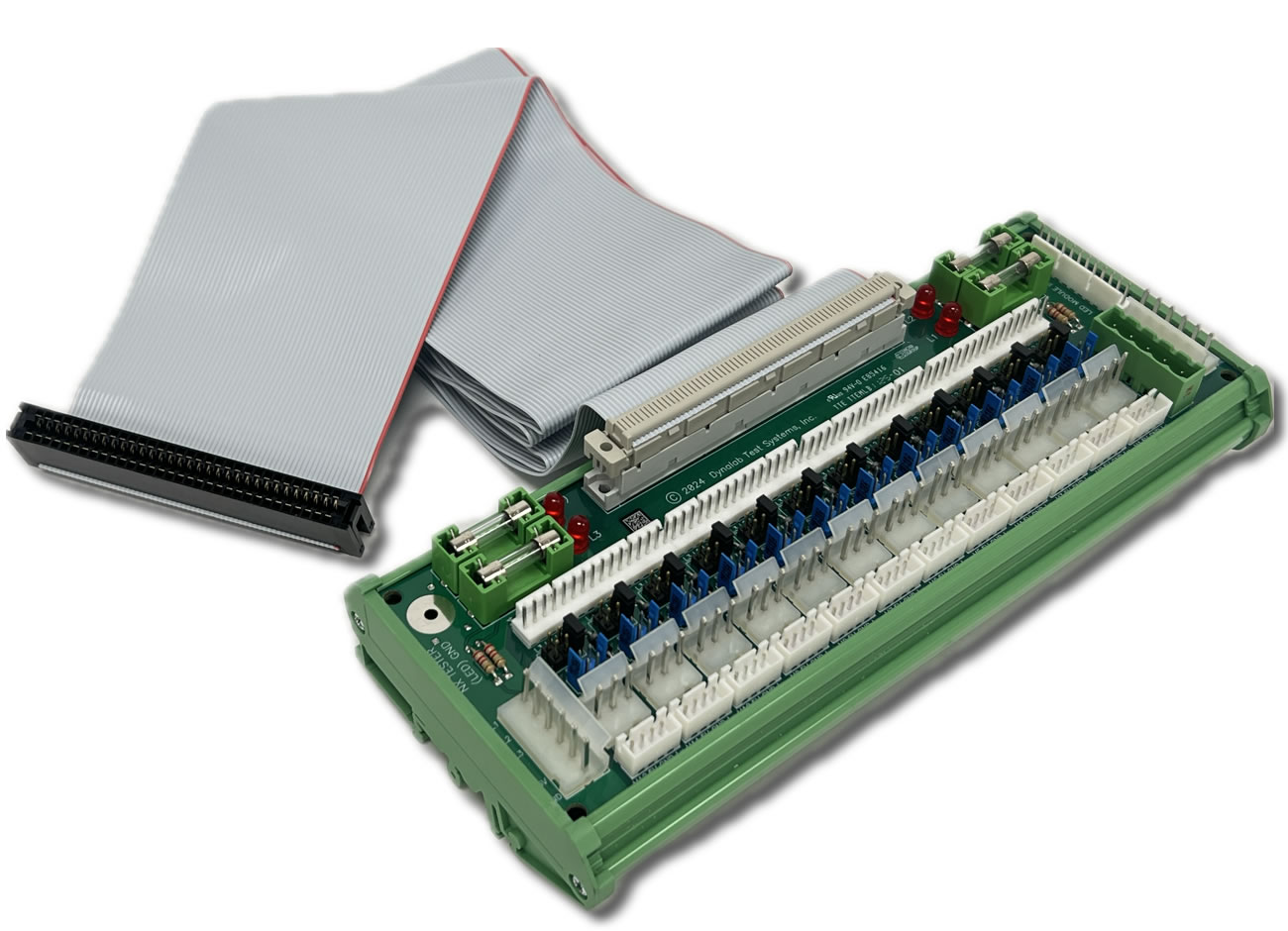

OLTT Assembly
OLTT board incorporated with base enclosure.
5-2201………..OLTT Interface

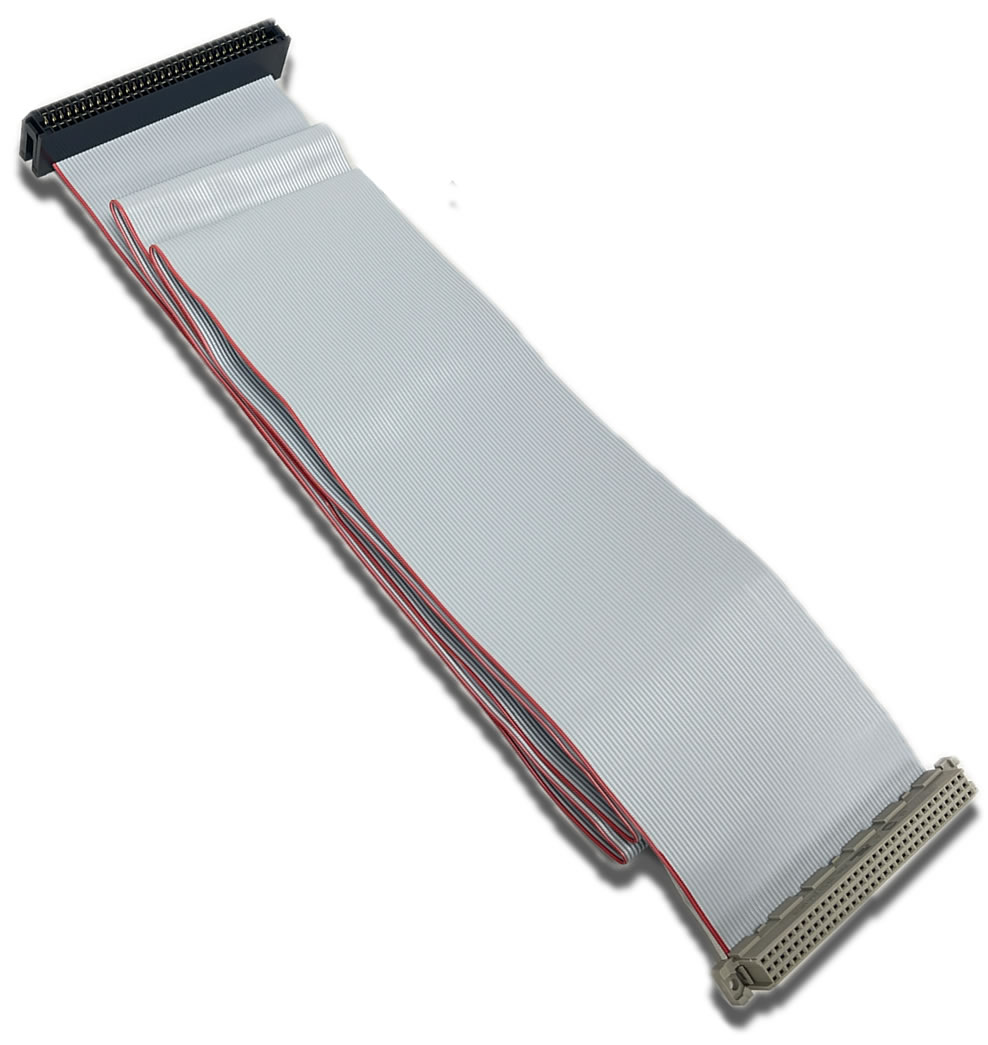

Ribbon Cable Assembly, DIN
Ribbon Cable Assemblies have a card-edge connector on one end, to mate with the NX Tester, and DIN header connector on the other end, to mate with the OLTT Interface Assembly.
5-2204………..Ribbon Interface Cable, DIN, 4′ (1.2 m)
5-2208………..Ribbon Interface Cable, DIN, 8′ (2.4 m)

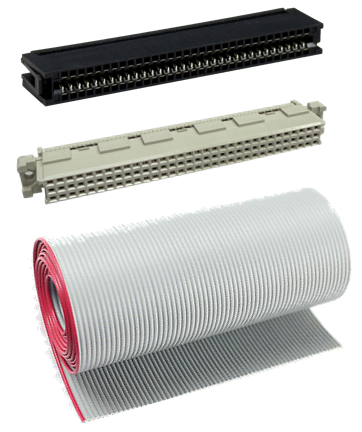

Ribbon Cable Assembly, DIN, Components
Ribbon Cable Assemblies can also be fabricated by purchasing the three individual components separately. Additional customer supplied assembly equipment is required.
5-2192………..Card Edge Connector, Ribbon Cable, 64 Position
5-2293………..DIN Connector
5-2194………..64 Conductor Ribbon Cable, 100 foot (30 m) lengths
